Hytale Server Management
HyOS - Hytale Server Manager
A Docker-based Hytale dedicated server management ecosystem. One command to deploy, authenticate, and manage your server with a full web dashboard, mod support, and automated updates.
Install HyOS
Choose your deployment method, then follow the steps below.
- Create a dataset for server data in your TrueNAS UI
- Set dataset ACL permissions: User 568, Group 568
- Open the TrueNAS web UI and go to Apps
- Click Discover Apps (top-right)
- Click the 3 dots in the top right
- Select Install via YAML
- Paste the YAML below into the editor
- Update /mnt/tank/apps/hytale to your dataset path (both services)
- Replace changeme123 with a secure API password
- Adjust memory settings based on your system (minimum 8GB recommended)
- Click Save
- Game Server will be available on: UDP port 30380
- Management UI will be available on: http://your-truenas-ip:30382
x-api-config: &api-config
# REQUIRED: Set your management API password (minimum 8 characters)
API_CLIENT_SECRET: ${API_CLIENT_SECRET:-changeme123}
API_CLIENT_ID: ${API_CLIENT_ID:-hyos-manager}
services:
hyos-server:
image: ghcr.io/editmysave/hyos/server:latest
pull_policy: always
container_name: hyos-server
user: "568:568"
restart: unless-stopped
stdin_open: true
tty: false
environment:
<<: *api-config
PUID: 568
PGID: 568
UMASK: "002"
TZ: ${TZ:-UTC}
JAVA_XMS: ${JAVA_XMS:-1G}
JAVA_XMX: ${JAVA_XMX:-3G}
USE_ZGC: "false"
G1_MAX_PAUSE: "200"
SERVER_PORT: "5520"
PATCHLINE: ${PATCHLINE:-release}
ENABLE_AOT: "true"
AUTO_UPDATE: ${AUTO_UPDATE:-false}
VERSION_CHECK_ENABLED: ${VERSION_CHECK_ENABLED:-true}
VERSION_CHECK_INTERVAL: ${VERSION_CHECK_INTERVAL:-3600}
SKIP_CONFIG_GENERATION: "false"
SERVER_NAME: ${SERVER_NAME:-Hytale Server}
SERVER_MOTD: ${SERVER_MOTD:-}
SERVER_PASSWORD: ${SERVER_PASSWORD:-}
MAX_PLAYERS: ${MAX_PLAYERS:-100}
MAX_VIEW_RADIUS: "32"
DEFAULT_WORLD: ${DEFAULT_WORLD:-default}
DEFAULT_GAMEMODE: ${DEFAULT_GAMEMODE:-Adventure}
LOCAL_COMPRESSION: "false"
DISPLAY_TMP_TAGS: "false"
PLAYER_STORAGE_TYPE: "Hytale"
WHITELIST_ENABLED: ${WHITELIST_ENABLED:-false}
HYTALE_ACCEPT_EARLY_PLUGINS: "false"
HYTALE_ALLOW_OP: "false"
HYTALE_BACKUP: "true"
HYTALE_BACKUP_FREQUENCY: "30"
HYTALE_DISABLE_SENTRY: "false"
API_ENABLED: "true"
API_PORT: "8080"
API_WEBSOCKET_ENABLED: "true"
API_WEBSOCKET_STATUS_INTERVAL: "1"
API_REGENERATE_CONFIG: "true"
DEBUG: "false"
NO_COLOR: "false"
ports:
# UDP port for Hytale QUIC protocol (game traffic)
- "30380:5520/udp"
- "30381:8080/tcp"
volumes:
# IMPORTANT: Update the host path to your TrueNAS dataset this holds your (world, config, mods, backups, auth)
- /mnt/tank/apps/hytale:/data:rw
healthcheck:
test: ["CMD", "/opt/scripts/healthcheck.sh"]
interval: 30s
timeout: 10s
retries: 3
start_period: 15s
# Graceful shutdown
stop_grace_period: 30s
# Logging - limit log size
logging:
driver: json-file
options:
max-size: "50m"
max-file: "3"
# Security
security_opt:
- no-new-privileges:true
hyos-manager:
image: ghcr.io/editmysave/hyos/manager:latest
pull_policy: always
container_name: hyos-manager
# Run as TrueNAS apps user
user: "568:568"
# Add root group for Docker socket access (socket is 0:0 with 660 permissions)
group_add:
- "0"
restart: unless-stopped
environment:
# Inherit shared API config (same password as server)
<<: *api-config
# Map to REST adapter env var names
REST_API_CLIENT_SECRET: ${API_CLIENT_SECRET:-changeme123}
REST_API_CLIENT_ID: ${API_CLIENT_ID:-hyos-manager}
# Adapter configuration
ADAPTER_TYPE: rest
HYTALE_CONTAINER_NAME: hyos-server
HYTALE_STATE_DIR: /data/.state
HYTALE_SERVER_HOST: hyos-server
HYTALE_SERVER_PORT: "8080"
# Node environment
NODE_ENV: production
COOKIE_SECURE: "false"
# Web UI port
ports:
- "30382:3000"
# Volume mounts
volumes:
# Shared data directory (for state files and world management)
- /mnt/tank/apps/hytale:/data:rw
- /var/run/docker.sock:/var/run/docker.sock:ro
depends_on:
- hyos-server
healthcheck:
test: ["CMD", "wget", "--no-verbose", "--tries=1", "--spider", "http://127.0.0.1:3000/api/health"]
interval: 30s
timeout: 10s
retries: 3
start_period: 60s
logging:
driver: json-file
options:
max-size: "10m"
max-file: "3"
security_opt:
- no-new-privileges:true
networks:
default:
driver: bridge
Screenshots
What it looks like

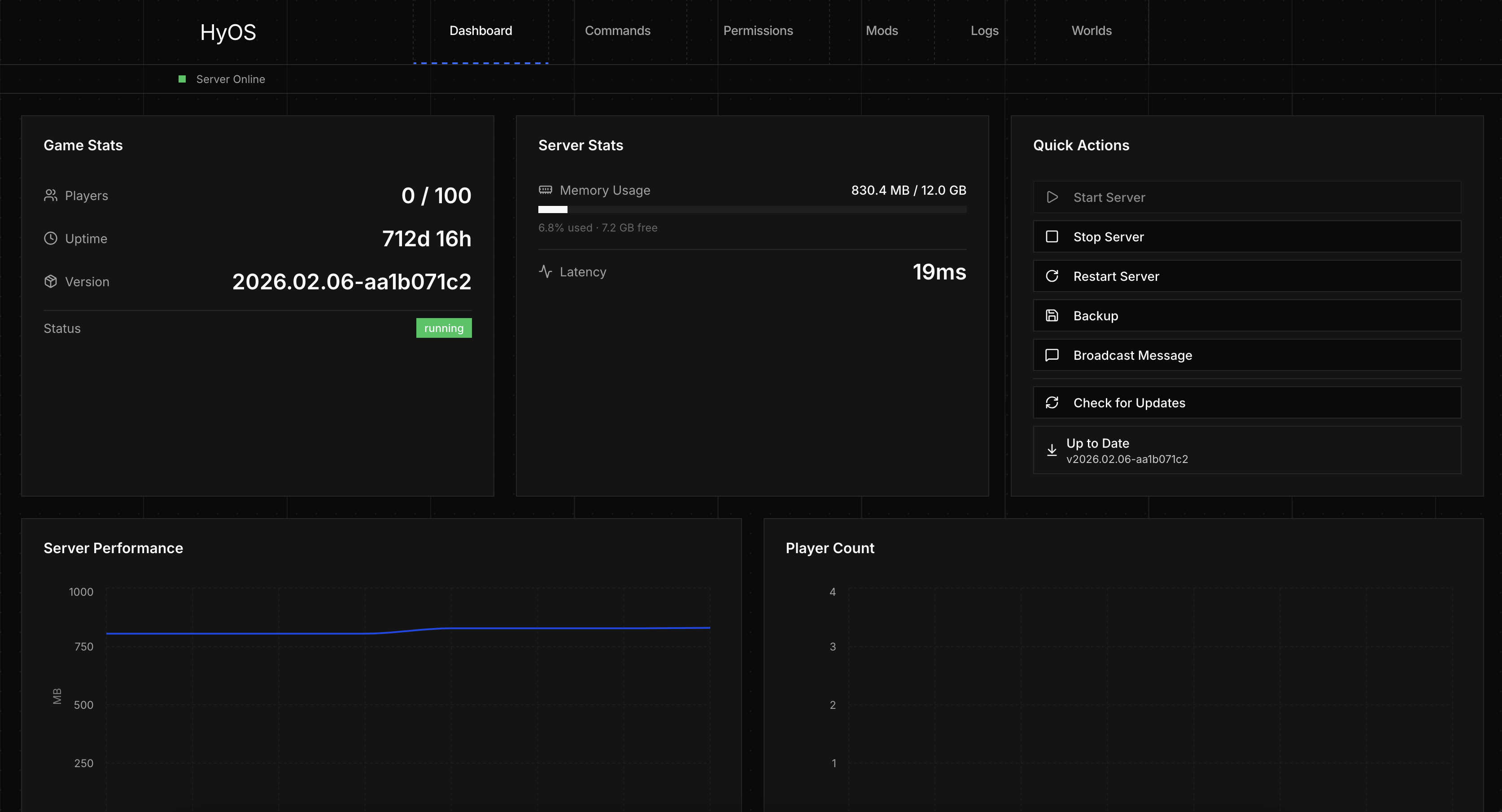

Server Dashboard
- Real-time server stats and performance graphs
- Quick actions: start, stop, restart, backup
- Player count, memory usage, and uptime tracking
What you can do with it
Everything you need to run and manage a Hytale dedicated server.
Easy server setup
Single Docker Compose file to deploy a fully configured Hytale dedicated server with automatic authentication.
Mod management
Install mods from CurseForge, NexusMods, or ModTale. Upload custom JARs with automatic manifest validation.
Live console
Stream server logs in real-time and execute commands directly from the web dashboard.
World management
Upload worlds, browse the file system, and switch between world slots through an intuitive UI.
Docker networking
Isolated container networking with configurable port mapping and bridge network support.
Server monitoring
Health checks, resource usage tracking, and automated restart policies to keep your server running.
Get involved
HyOS is open source. Contributions, issues, and feedback are welcome.
Get in touch
Have a question or found a bug? Reach out or open a GitHub issue.
